Catalog: Door & Partition Extrusions

Over 290+ Stock Dies to Choose From - Profiles Direct From India

These door and partition extrusions are manufactured at our partner facility in India. Our team is on the ground there to ensure the quality of your profiles. MOQ: 1000 kg / 1.1 US Tons. Profiles can receive the surface finish of your choice, including paint, powder coat, anodized, and wood-look finish.

Browse the Stock Profiles Below

Browse the selection of our 293 aluminum door and extrusion shapes below. If you are interested in a quote, reach out to us with the section number, desired quantity, and any requirements you have. If you have a custom aluminum extrusion shape, you can contact us for a quote as well. Please note that extrusions are made to order and our Minimum Order Quantity is 1000 kg (1.1 US tons).

If you have any questions or would like a downloadable version, feel free to contact us and we will get back to you.

Door Sections

Click an image to zoom in.

SL. No.	Section No.	A	B	C	Weight kg/m
1	J-19543	47.62	44.45	0.80	0.493
2	J-19538	47.62	44.45	1.18	0.667
3	J-19547	47.62	44.45	1.35	0.759
4	J-19526	47.62	44.50	1.62	0.881
5	J-19569	47.62	44.45	2.02	1.052
6	J-19501	47.62	44.45	3.10	1.509
7	J-19585	50.00	44.50	1.90	1.030
8	J-19554	50.00	44.50	2.50	1.292
9	J-19516	53.70	44.45	2.30	1.238
10	J-19600	85.00	44.45	1.40	1.037
11	J-19550	85.00	44.45	1.56	1.139
12	J-19572	85.00	44.45	1.80	1.301
13	J-19560	85.00	44.45	2.00	1.417
14	J-19509	85.00	44.45	3.00	2.050
15	J-19592	85.00	44.45	3.26	2.200

SL. No.	Section No.	A	B	C	Weight kg/m
1	J-19542	47.62	44.45	1.14	0.607
2	J-19527	47.62	44.45	1.74	0.881
3	J-20071	47.62	44.45	1.88	0.943
4	J-20061	47.62	44.45	2.17	1.072
5	J-19512	47.62	44.45	3.00	1.426
6	J-19548	47.62	44.45	1.42	0.738
7	J-19549	83.50	44.45	1.62	1.139
8	J-19582	83.50	44.45	1.87	1.300
9	J-19508	83.50	44.45	3.00	2.107
10	J-19647	83.50	44.45	4.00	2.609
11	J-19568	104.00	44.45	1.80	1.600

SL. No.	Section No.	A	B	Weight kg/m
1	J-19570	47.62	1.90	0.911
2	J-19502	47.62	2.82	1.294
3	J-19528	53.70	2.30	1.173

SL. No.	Section No.	A	B	Weight kg/m
1	J-19520	48.00	9.50	1.342
2	J-19519	100.00	25.00	1.917

SL. No.	Section No.	A	Weight kg/m
1	J-19613	1.40	0.830
2	J-19565	2.40	1.281

SL. No.	Section No.	A	Weight kg/m
1	J-19650	48.00	0.774
2	J-19649	57.90	0.988

SL. No.	Section No.	A	B	Weight kg/m
1	J-20006	25.00	2.40	0.918
2	J-20042	49.91	0.98	0.607
3	J-20086	49.91	1.30	0.753
4	J-19575	49.91	1.60	0.882
5	J-20060	49.91	2.01	1.072
6	J-20014	49.91	3.00	1.495
7	J-19625	83.50	1.28	0.976
8	J-19599	83.50	1.40	1.052
9	J-19551	83.50	1.54	1.139
10	J-19535	83.50	1.70	1.243
11	J-20111	83.50	2.11	1.497
12	J-29525	83.50	2.40	1.679
13	J-19583	83.50	3.18	2.145
14	J-19564	100.00	2.00	1.603
15	J-19653	100.00	3.00	2.302
16	J-20002	150.00	2.65	2.779
17	J-19596	150.00	3.00	3.116
18	J-19620	200.00	3.00	3.926

SL. No.	Section No.	A	B	C	D	Weight kg/m
1	J-19576	47.62	44.45	0.99	10.15	0.537
2	J-19539	47.62	44.45	1.40	10.20	0.719
3	J-19637	47.62	44.45	1.67	10.20	0.850
4	J-19528	47.62	44.45	1.74	10.16	0.881
5	J-19571	47.62	44.45	1.95	10.16	0.974
6	J-19503	47.62	44.45	3.18	10.16	1.501
7	J-19555	50.00	44.50	2.50	9.50	1.247
8	J-19580	83.50	44.45	1.49	9.50	1.055
9	J-20140	83.50	44.45	1.26	9.50	0.935
10	J-19581	83.50	44.45	2.00	9.50	1.384
11	J-19593	83.50	44.45	3.27	9.50	2.172
12	J-19648	83.50	44.45	4.00	9.50	2.609
13	J-19563	85.00	44.45	2.70	10.00	1.843
14	J-19544	95.25	44.45	0.89	25.40	0.719
15	J-19540	95.25	44.45	1.16	25.40	0.911
16	J-19529	95.25	44.45	1.70	25.40	1.301
17	J-19505	95.25	44.45	2.00	25.40	1.511
18	J-19556	101.60	44.50	2.50	25.00	1.943
19	J-19541	114.30	44.45	1.29	25.40	1.139
20	J-19534	114.30	44.45	1.35	10.15	1.190
21	J-19530	114.30	44.45	1.49	25.40	1.302
22	J-19623	114.30	44.45	1.68	10.15	1.459
23	J-19567	114.30	44.45	1.75	10.15	1.516
24	J-19559	114.30	44.45	1.95	10.15	1.674
25	J-19573	114.30	44.45	2.15	10.15	1.836
26	J-19574	114.30	44.45	2.15	25.40	1.836
27	J-19591	114.30	44.45	2.42	10.15	2.051
28	J-19510	114.30	44.45	3.18	10.15	2.646
29	J-19511	114.30	44.45	3.18	25.40	2.646
30	J-19517	150.00	44.45	2.20	25.40	2.376
31	J-19584	150.00	44.45	3.10	25.40	3.181
32	J-19621	200.00	44.45	3.00	25.40	3.894

SL. No.	Section No.	A	B	C	Weight kg/m
1	J-19566	47.00	38.00	2.40	1.102
2	J-19616	47.00	38.00	4.20	1.797
3	J-19579	47.50	38.25	1.58	0.769
4	J-19636	47.62	37.46	3.00	1.344
5	J-20138	83.50	73.35	1.46	0.998
6	J-19590	83.50	73.35	1.55	1.053

SL. No.	Section No.	A	B	C	Weight kg/m
1	J-19607	68.00	32.00	0.80	0.397
2	J-19597	68.00	32.00	1.00	0.492

SL. No.	Section No.	A	Weight kg/m
1	J-29300	31.40	0.588
2	J-28913	35.40	0.629
3	J-19640	41.4	0.691

Door Sections

Click an image to zoom in.

SL. No.	Section No.	Weight kg/m
1	J-19578	1.006
2	J-19514	1.415
3	J-19614	1.243
4	J-19589	0.777
5	J-19601	1.481
6	J-19531	0.924
7	J-19632	3.546
8	J-19634	1.840
9	J-19545	2.959
10	J-19630	5.093
11	J-21339	1.318
12	J-19515	3.170
13	J-19546	2.725
14	J-19595	2.325
15	J-19611	1.527
16	J-19602	1.581
17	J-19646	0.914
18	J-19504	1.324
19	J-19594	1.285
20	J-19626	0.745
21	J-19552	1.116
22	J-19557	1.248
23	J-19609	0.974
24	J-19612	2.043
25	J-19619	1.124
26	J-19617	1.707

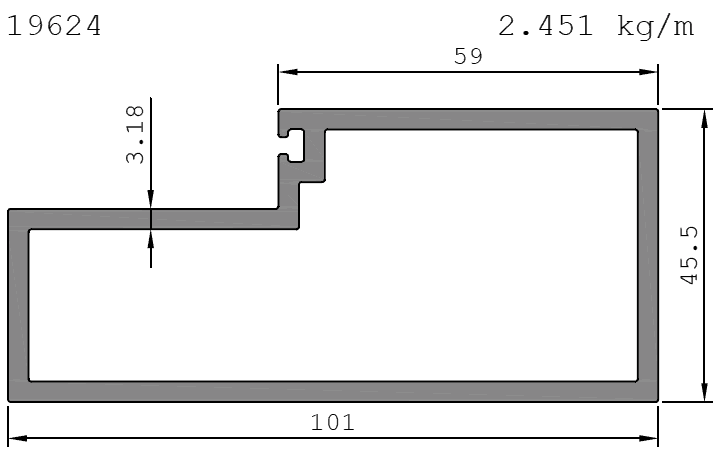

27	J-19624	2.451
28	J-19628	2.982
29	J-19633	2.043
30	J-15191	1.591
31	J-19651	2.457
32	J-S4361	4.460
33	J-20096	1.108
34	J-20110	1.013

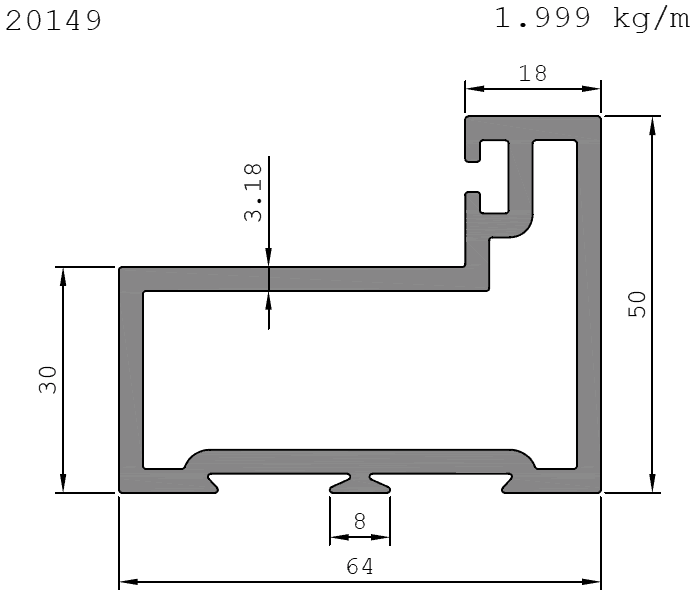

35	J-20149	1.999
36	J-38521	1.259
37	J-S5298	2.628
38	J-19533	2.863
39	J-19553	1.800
40	J-19558	1.926
41	J-19618	2.111
42	J-19610	1.753
43	J-19615	3.145
44	J-19635	1.876
45	J-19622	1.986
46	J-19654	2.393
47	J-S4564	3.425
48	J-21473	0.988
49	J-21474	1.881

Door Sections

Click an image to zoom in.

SL. No.	Section No.	A	Weight kg/m
1	J-21034	2.64	1.555
2	J-20513	3.00	1.705

Door Sections

Click an image to zoom in.

SL. No.	Section No.	A	Weight kg/m
1	J-21033	2.64	0.945
2	J-20515	3.00	1.056

SL. No.	Section No.	Weight kg/m
1	J-19608	1.626
2	J-19641	1.654
3	J-19642	2.981
4	J-20153	0.976
5	J-20087	2.079
6	J-20154	1.757

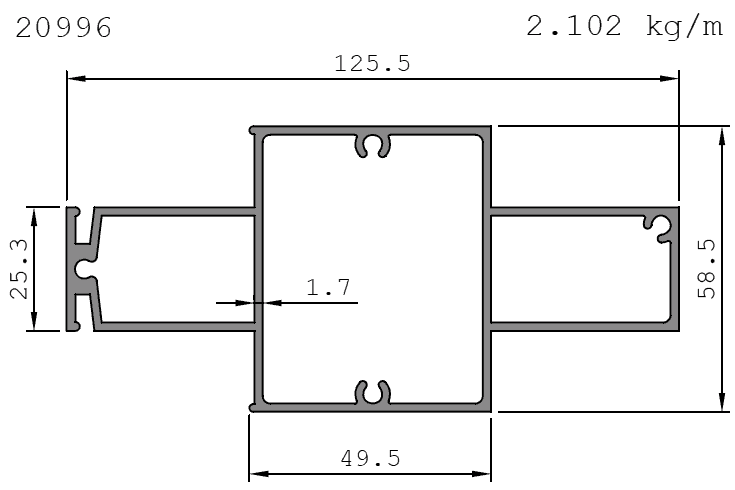

7	J-20996	2.102
8	J-21312	4.033
9	J-21311	3.524
10	J-20900	1.207
11	J-19598	0.632
12	J-19603	0.529
13	J-19604	0.655
14	J-19606	0.434
15	J-19631	1.450
16	J-19639	0.785

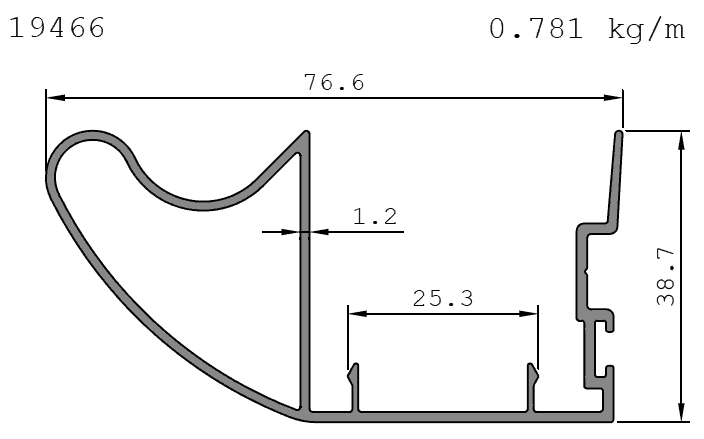

17	J-19466	0.781
18	J-19467	0.710
19	J-29562	1.655
20	J-19638	1.687
21	J-19644	0.808
22	J-19643	0.952
23	J-19645	0.552
24	J-19655	0.913
25	J-19656	0.859
26	J-19652	1.172
27	J-15171	0.580
28	J-S5312	0.416

Partition Sections

Click an image to zoom in.

Double Groove

SL. No.	Section No.	A	B	C	D	Weight kg/m
1	J-20089	47.80	24.00	0.59	7.50	0.316
2	J-20050	50.80	25.40	0.63	7.50	0.350
3	J-20044	50.80	25.40	0.79	7.50	0.414
4	J-20079	50.80	25.40	0.98	7.50	0.496
5	J-20031	50.80	25.40	1.19	7.50	0.581
6	J-20017	50.80	25.40	1.34	8.00	0.651
7	J-20046	63.50	38.10	0.66	7.50	0.455
8	J-20069	63.50	38.10	0.83	7.50	0.547
9	J-20034	63.50	38.10	0.92	7.50	0.593
10	J-20053	63.50	38.10	1.08	7.50	0.686
11	J-20026	63.50	38.10	1.21	7.50	0.761
12	J-20062	63.50	38.10	1.28	8.00	0.805
13	J-20047	63.50	38.10	1.53	8.00	0.942
14	J-20072	63.50	38.10	1.85	8.00	1.095
15	J-20064	63.50	38.10	2.50	8.00	1.444
16	J-20004	63.50	38.10	3.18	8.00	1.790
17	J-20143	75.00	38.10	1.20	8.00	0.832
18	J-20144	75.00	45.00	1.25	8.00	0.908
19	J-20037	82.50	38.00	1.10	8.00	0.833
20	J-20124	89.00	32.00	1.50	8.00	1.079
21	J-20035	82.50	38.00	1.60	8.00	1.139
22	J-S4628	82.50	38.00	3.18	8.00	2.115
23	J-20021	89.00	32.00	2.75	8.00	1.905
24	J-20023	89.00	32.00	2.75	23.00	2.150
25	J-20147	92.00	31.75	1.30	8.00	0.972
26	J-20152	92.00	31.75	2.00	8.00	1.422
27	J-20051	101.60	44.45	1.20	8.00	1.060
28	J-20028	101.60	44.45	1.50	8.00	1.301
29	J-20076	101.60	44.45	1.93	8.00	1.608
30	J-20075	101.60	44.45	2.40	8.00	1.954
31	J-20057	101.60	44.45	2.50	8.00	2.050
32	J-20066	101.60	44.45	3.00	8.00	2.415
33	J-20010	101.60	44.45	3.18	8.00	2.683
34	J-20113	101.60	44.45	3.60	8.00	2.849
35	J-20145	116.00	44.50	1.50	8.00	1.404
36	J-20081	123.00	44.45	1.50	8.00	1.456

Single Groove

SL. No.	Section No.	A	B	C	D	Weight kg/m
1	J-20088	47.80	24.00	0.60	7.50	0.274
2	J-20058	50.00	25.00	2.00	8.00	0.849
3	J-20049	50.80	25.40	0.73	7.50	0.342
4	J-20043	50.80	25.40	0.91	7.50	0.414
5	J-20080	50.80	25.40	1.09	7.50	0.489
6	J-20030	50.80	25.40	1.30	8.00	0.581
7	J-20016	50.80	25.40	1.50	8.00	0.651
8	J-20045	63.50	38.10	0.75	7.50	0.455
9	J-20068	63.50	38.10	0.92	7.50	0.546
10	J-20033	63.50	38.10	1.01	7.50	0.595
11	J-20054	63.50	38.10	1.17	7.50	0.681
12	J-20027	63.50	38.10	1.31	8.00	0.758
13	J-20063	63.50	38.10	1.41	8.00	0.818
14	J-20125	63.50	38.10	1.50	8.00	0.861
15	J-20048	63.50	38.10	1.65	8.00	0.942
16	J-20073	63.50	38.10	1.95	8.00	1.092
17	J-20065	63.50	38.10	2.50	8.00	1.369
18	J-20005	63.50	38.10	3.18	8.00	1.777
19	J-20038	82.50	38.00	1.20	8.00	0.829
20	J-20036	82.50	38.00	1.70	8.00	1.139
21	J-S4566	82.50	38.00	3.18	8.00	2.037
22	J-20032	89.00	32.00	2.75	8.00	1.787
23	J-20022	89.00	32.00	2.75	23.00	1.933
24	J-20126	92.00	29.50	1.15	7.50	0.794
25	J-20128	92.00	32.00	1.30	8.00	0.910
26	J-20052	101.60	44.45	1.27	8.00	1.049
27	J-20029	101.60	44.45	1.60	8.00	1.301
28	J-20146	101.60	44.45	1.90	8.50	1.534
29	J-20078	101.60	44.45	2.01	8.00	1.605
30	J-20077	101.60	44.45	2.47	8.00	1.950
31	J-20102	101.60	44.45	2.50	8.00	1.977
32	J-20067	101.60	44.45	3.00	8.00	2.342
33	J-20011	101.60	44.45	3.18	8.00	2.541
34	J-20112	101.60	44.45	3.70	8.00	2.846
35	J-20059	123.00	44.45	1.50	8.00	1.394
36	J-20136	123.00	44.45	3.00	8.00	2.687
37	J-S4292	127.00	44.45	3.00	8.00	2.752
38	J-20139	127.20	25.25	1.22	8.00	1.048

SL. No.	Section No.	A	Weight kg/m
1	J-20130	1.40	0.947
2	J-20024	1.70	1.158
3	J-20001	2.65	1.657
4	J-20137	3.18	1.954

SL. No.	Section No.	A	Weight kg/m
1	J-20150	0.85	0.155
2	J-20151	1.10	0.195
3	J-20121	1.20	0.210
4	J-20107	1.44	0.246
5	J-20105	1.50	0.255

SL. No.	Section No.	A	B	C	Weight kg/m
1	J-20074	101.60	44.45	2.45	1.951
2	J-20008	101.60	44.45	3.18	2.508

SL. No.	Section No.	A	B	C	Weight kg/m
1	J-20007	101.60	44.45	2.40	1.995
2	J-20101	101.60	44.45	3.18	2.617

Partition Sections

Click an image to zoom in.

SL. No.	Section No.	Weight kg/m
1	J-20141	1.992
2	J-20117	0.970
3	J-20009	2.062
4	J-20013	1.959
5	J-20155	1.474
6	J-20122	1.774
7	J-20123	1.943
8	J-20362	1.153
9	J-20363	1.297
10	J-20055	1.032
11	J-20134	1.036
12	J-20056	0.969
13	J-20133	0.925
14	J-20131	1.504
15	J-20132	2.044
16	J-20097	1.658
17	J-20012	0.886
18	J-20094	0.499
19	J-20095	0.556
20	J-20148	0.661
21	J-20142	0.901
22	J-20156	1.062
23	J-20127	1.887
24	J-20019	2.655

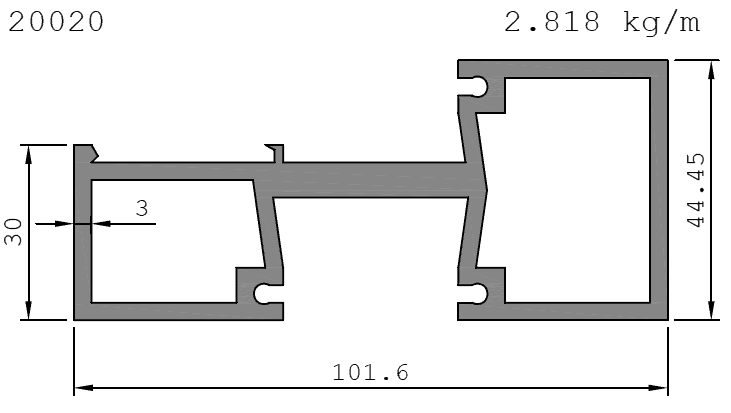

25	J-20020	2.818
26	J-20135	2.673
27	J-20092	0.717
28	J-20129	0.346
29	J-20093	1.197

Can't Find the Exact Shape You're Looking For?

Get a Custom Extrusion Die
